Buyer’s Checklist for Underwater LED Boat Lights: What Should You Compare?

1. Brightness and Power of Underwater Boat Lights

Brightness is often the first thing buyers check.
However, higher wattage does not always mean better underwater lighting.
The final lighting effect also depends on:

• LED efficiency

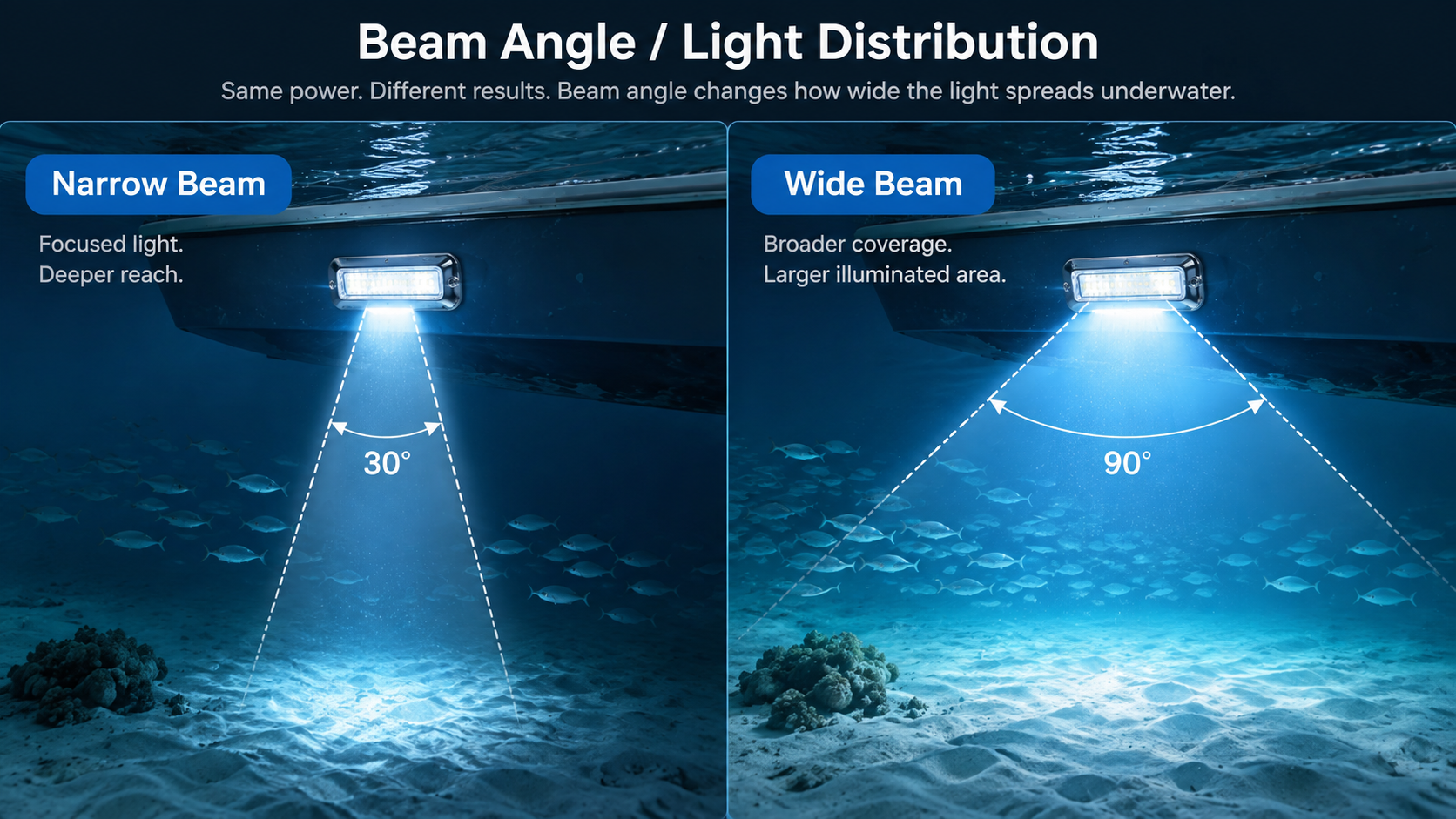

• Beam angle
• Light distribution
• Installation position
• Water clarity
• Number of lights installed

For compact underwater LED boat lights, power should match the size and energy use of the light. Good heat control is also important.
For example, a well-designed 10W light may work better than a higher-power light with poor light spread.
For this reason, buyers should compare:

• Rated power
• Lumen output
• Beam coverage
• LED arrangement
• Light color
• Installation position

For OEM projects, sample testing is useful before mass production. A light may look bright in a showroom but perform differently after it is installed below the waterline.

2. IP68 Waterproof Protection

Waterproof performance is one of the most important features of underwater boat lights.
A normal marine light may only need protection from rain or water spray. An underwater light may stay in direct contact with water for long periods.
That means the sealing design must protect the whole product.
Important areas include:
Front lens sealing
Housing joints
Cable entry
Screws and fixing points
Internal sealing materials
An IP68 rating is a useful reference for underwater applications.
However, buyers should not look at the IP number alone.
They should also ask how the product is tested.
For example:

• Is each production batch checked?

• Is the waterproof test completed before shipment?

• Is the cable entry included in the sealing test?

These details matter because even a well-designed housing can fail if the cable outlet is not properly sealed.

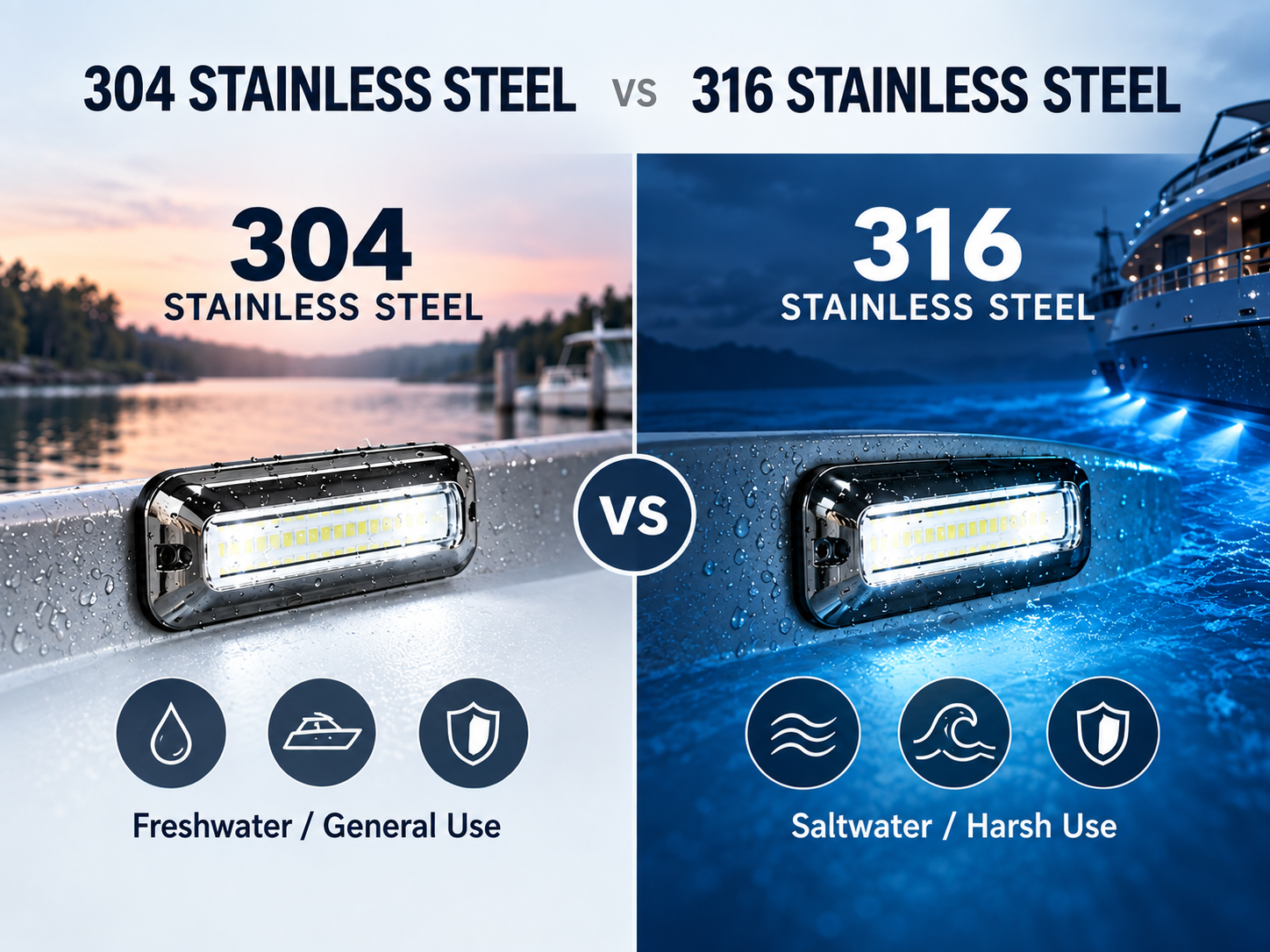

3. 304 vs 316 Stainless Steel for Marine Use

Housing material has a direct effect on the durability of boat underwater lights.
Marine products are often exposed to moisture, salt, and changing temperatures. Poor material selection can lead to corrosion after long-term use.
304 and 316 stainless steel are both common in marine and industrial products.
304 stainless steel offers good strength and corrosion resistance for many general applications.
316 stainless steel usually provides better resistance in demanding saltwater environments.
For this reason, 316 stainless steel is often considered when the product will be used in seawater for long periods.
Buyers should choose the housing material based on where the light will be used.
A product designed for freshwater use may not need the same material level as a product used on coastal fishing boats or yachts.
For example, some DAMAVO underwater lights use 304 or 316 stainless steel. The material depends on the product and where it will be used.

4. Light Color Options

Light color affects both appearance and underwater visibility.
Common options for underwater lights for boats include blue, white, green, and other colors depending on the product.
Blue is popular because it creates a clear and modern marine effect around the hull.
White provides a more natural lighting effect.
Green and other colors may be used for different visual styles or application needs.
For OEM buyers, color selection should not only depend on appearance.
It is also useful to confirm:

• Available LED colors
• Color consistency
• Whether the color is fixed or optional
• Whether custom colors are available
• Whether different batches remain visually consistent

This is important for boat builders and brands that need the same appearance across multiple production orders.

5. Product Size and Installation Design

Installation space on a boat is often limited.
That means product shape and dimensions are also important.

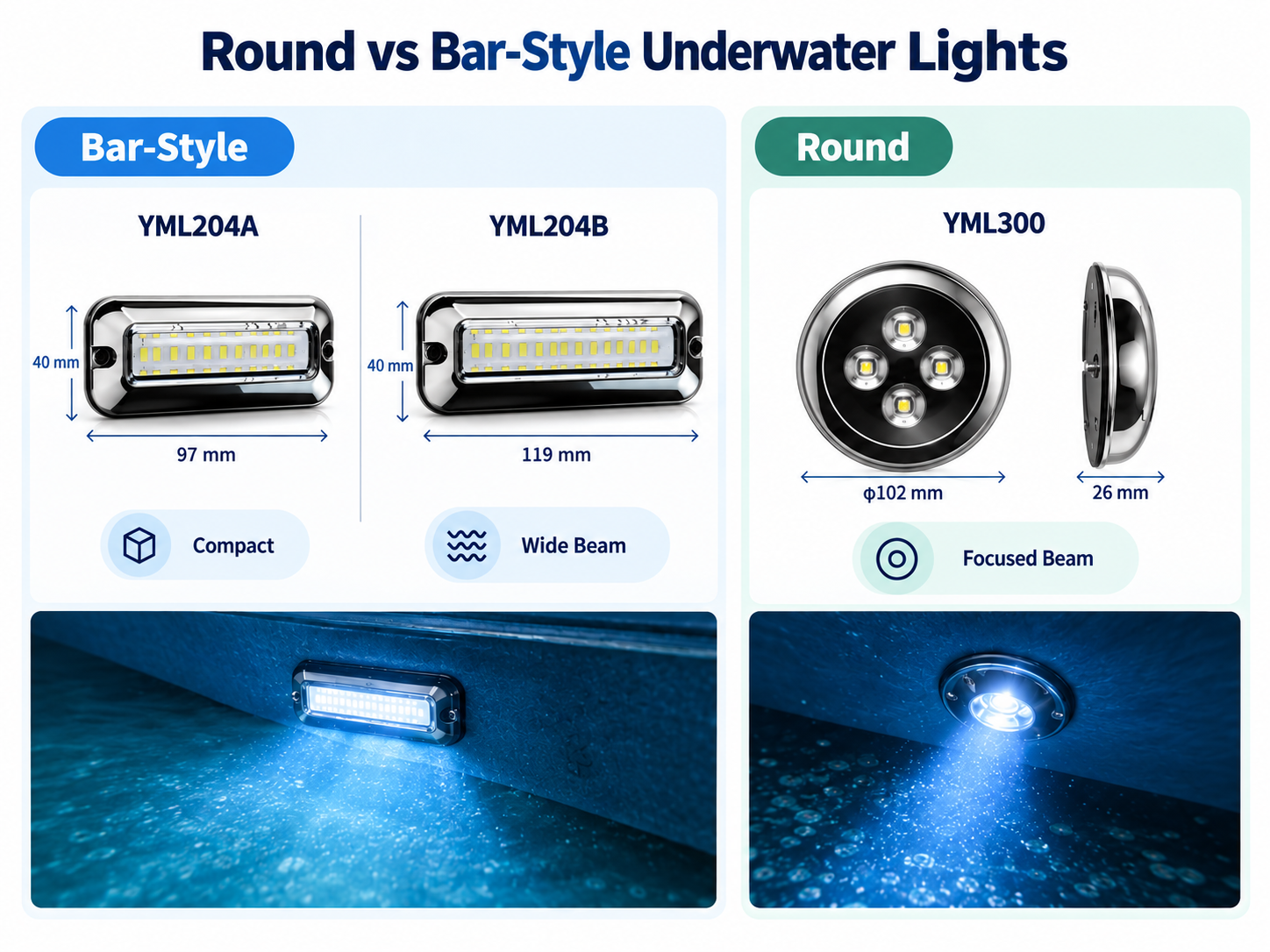

Some underwater LED boat lights use round designs, while others use longer bar-style structures.
Different shapes may suit different installation positions.
A round light may be easier to install in a small area.
A bar-style light may provide a wider lighting area or fit better along certain parts of the hull.
Before ordering, buyers should check:
Product dimensions
Mounting position
Screw locations
Cable direction
Installation depth
Available space around the light
For OEM projects, drawings and installation dimensions are especially useful.
They allow the buyer to confirm fit before production starts.
This can reduce installation problems later.

6. Corrosion Resistance in Marine Environments

Waterproofing and corrosion resistance are different.
A product can be waterproof but still have corrosion problems if the material is not suitable for long-term marine use.
This is especially important in saltwater.
Buyers should not only check the main housing.
They should also look at:

• Screws
• Metal joints
• Cable outlets
• Mounting parts
• Other exposed metal components

Salt spray testing can help show how materials react in a corrosive environment.
For marine underwater lights, this test can help buyers check product quality before placing a large order.
OEM buyers can also ask for test reports or special tests for their project.

7. Cable and Sealing Quality

The cable is easy to miss, but it is an important part of the light.
If water enters through the cable outlet, it can damage the LED board and other parts inside the light.
When comparing underwater LED boat lights, buyers should check:
Cable length
Cable material
Wire size
Cable entry sealing
Connector type
Installation direction
Cable length is also important.
A standard cable may work for one vessel but may not fit another.
For OEM projects, custom cable lengths and connector options can make wiring and installation easier.

8. Testing and Quality Control

A product sheet shows the main features and performance of the light.
Testing helps confirm whether it can actually meet those requirements.
Useful tests for underwater boat lights may include:
Waterproof testing
Functional testing
Aging testing
Electrical testing
Temperature testing
Vibration testing
Salt spray testing
Waterproof testing checks the sealing structure.
Aging testing can help identify early component or assembly problems.
Salt spray testing is useful for checking corrosion resistance.
Vibration testing is also important because boats may experience continuous movement during operation.
For B2B buyers, production consistency is just as important as sample quality.
A good sample does not guarantee that every future batch will perform the same way.
Buyers should ask how the supplier checks quality from the sample stage to mass production.

9. What OEM Buyers Should Compare Before Ordering

OEM buyers often need more than a standard product.
The right boat underwater lights should fit the boat, installation space, and electrical system. They may also need to match brand requirements.
Before placing an order, buyers should confirm:
Power
Housing material
Waterproof rating
Light color
Product dimensions
Cable length
Installation method
Logo requirements
Packaging
Testing requirements
It is also useful to check whether the supplier can support:
Sample production
Small-batch trials
Custom structures
Material changes
Cable customization
Later volume production
Clear project information helps reduce mistakes.
Buyers should share drawings and installation sizes first. They should also provide the voltage, order quantity, and application.
For OEM projects, DAMAVO can offer different stainless steel materials, product designs, cable options, and custom features.

Conclusion

Choosing underwater LED boat lights is not only about price and power.
Buyers should also check waterproof protection, stainless steel material, corrosion resistance, installation, cable design, product size, and testing.
For OEM and B2B projects, quality control and stable production are also important.
A reliable underwater light should work well as a complete system. Buyers should compare the full product design instead of only one feature. This makes it easier to choose the right product and avoid installation problems.

Frequently Asked Questions

What are underwater LED boat lights?

Underwater LED boat lights are waterproof lights used on boats. They are installed below or near the waterline. These lights are often used on yachts, fishing boats, and other vessels. They can provide decorative light and underwater lighting.

Why is IP68 important for underwater boat lights?

IP68 offers a higher level of water protection than lower IP ratings such as IP44. Buyers should also check the sealing design and the supplier’s waterproof test.

Which is better for boat underwater lights, 304 or 316 stainless steel?

Both are good choices. 316 stainless steel offers better corrosion resistance in harsh saltwater conditions. 304 stainless steel is suitable for many general marine uses.
What should buyers check when choosing boat underwater lights?Buyers should check the power, housing material, waterproof rating, and light color. They should also check the cable design, installation type, size, corrosion resistance, and product testing.
Can underwater boat lights be customized?Yes. Depending on the supplier, underwater boat lights can be customized in material, light color, cable length, housing design, logo, packaging, and other details.
